Nux Loop Core Deluxe Bundle Gitarreneffekt

24-bit Looper Pedal with 8-Hour Recording and Drum Machine

The NUX Loop Core Deluxe Bundle is a feature-packed looper pedal designed for guitarists and bassists who want to build multi-layered arrangements on a single stompbox. Able to record up to 8 hours of loop phrases with unlimited overdubs in 24-bit / 44.1 kHz audio quality, it stores them across 99 memory locations, allowing song structures to be rehearsed and performed in full without the need to re-record every time.

What Sets the Bundle Apart

Delivered with the NMP-2 Dual Footswitch, this model allows hands-free jumps between saved verse, chorus and bridge phrases, eliminating the menu diving that slows down live looping. A built-in drum machine with 40 rhythms (30 in 4/4 and 10 in 3/4) covers rock, pop, blues and jazz styles, and automatic tempo detection synchronizes new drum patterns to existing loops. Through a Mini-B USB port, users can import 24-bit / 44.1 kHz WAV files for backing tracks or back up their own loops.

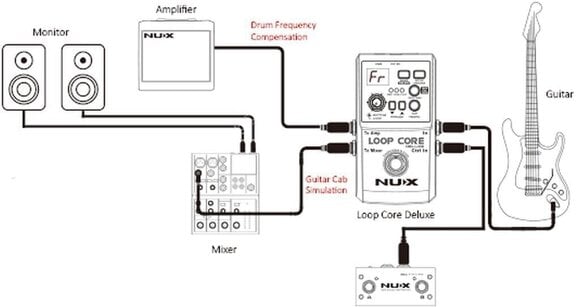

Signal Routing and I/O — Stereo Outputs for Amp and Mixer

There are two physical outputs: amplifier out and mixer out with built-in cabinet simulation. The drum track can be sent to a mixing desk while the dry guitar signal remains at the amp. With frequency compensation, the drum track keeps its low end tight on either output path.

• Inputs: 6.3 mm jack instrument input + Control IN for the NMP-2 footswitch — hands-free phrase selection
• Outputs: 6.3 mm jack amplifier out and 6.3 mm jack mixer out (cabinet simulated) — split rig or send drums to FOH
• Pedalboard users can switch between true and buffered bypass using the STOP MODES button during power-up to match their signal chain.

Recording Capacity and Audio Quality

Recording time up to 8 hours and unlimited overdubs at 24-bit resolution give players room for full song arrangements rather than short sketches. With 99 memory locations, verse, chorus, bridge and solo sections stay organized and instantly recallable, while the 24-bit A/D converter, -98 dBu noise floor, and 101 dB dynamic range preserve the original guitar tone in every layer.

• Recording Time: Up to 8 hours (480 minutes) — covers full sets of layered arrangements
• Audio Resolution: 24-bit A/D and signal processing at 44.1 kHz — captures detail without coloration
• Save your work in 99 user slots, keeping songs, parts and practice ideas organized.
• Drum Patterns: 40 onboard (30 in 4/4, 10 in 3/4) — play along without a metronome click

Controls, Power and Form Factor

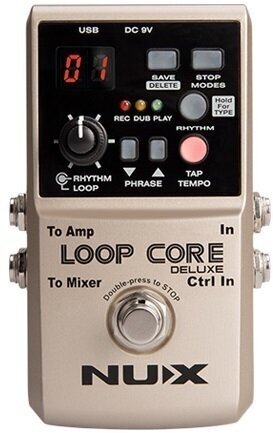

On the top panel, controls for Tap Tempo, Stop, Phrase, Rhythm and Save provide direct access to the most-used looper actions, removing the need for menu scrolling. Power is supplied either by a 9 V DC negative-tip adapter or a 9 V battery for portable setups. Measuring 122 x 72 x 47 mm and weighing 270 g, the compact chassis integrates easily into crowded pedalboards alongside drives and modulation effects.

• Tap Tempo, Stop, Phrase, Rhythm, and Save are all accessible with a single press, streamlining the core workflow.
• Power: 9 V DC negative tip or 9 V battery, 65–70 mA current draw — works on battery-powered mini boards
• Dimensions: 122 x 72 x 47 mm — standard compact stompbox footprint
• Weight: 270 g — light enough for top-row mounting on a pedalboard

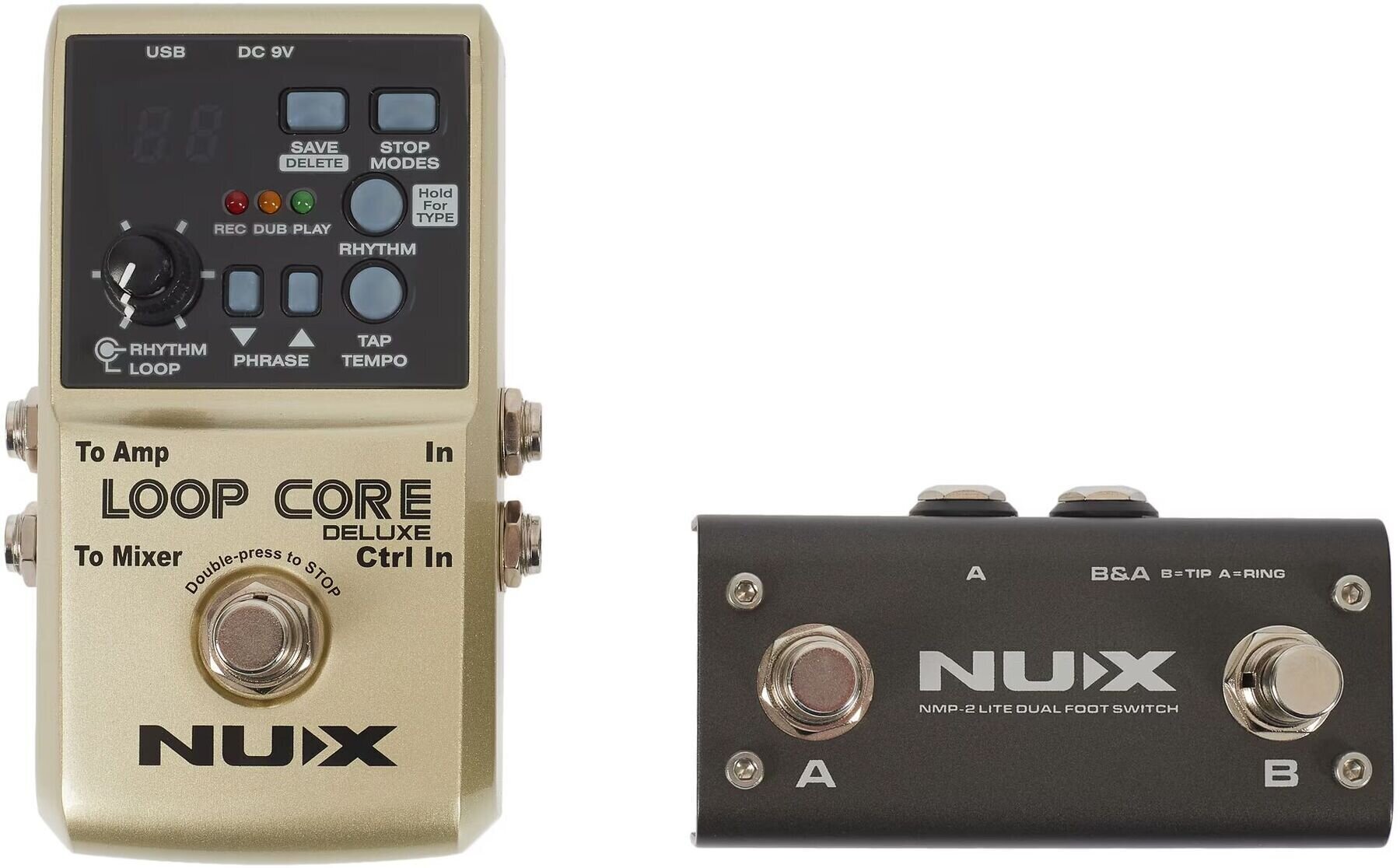

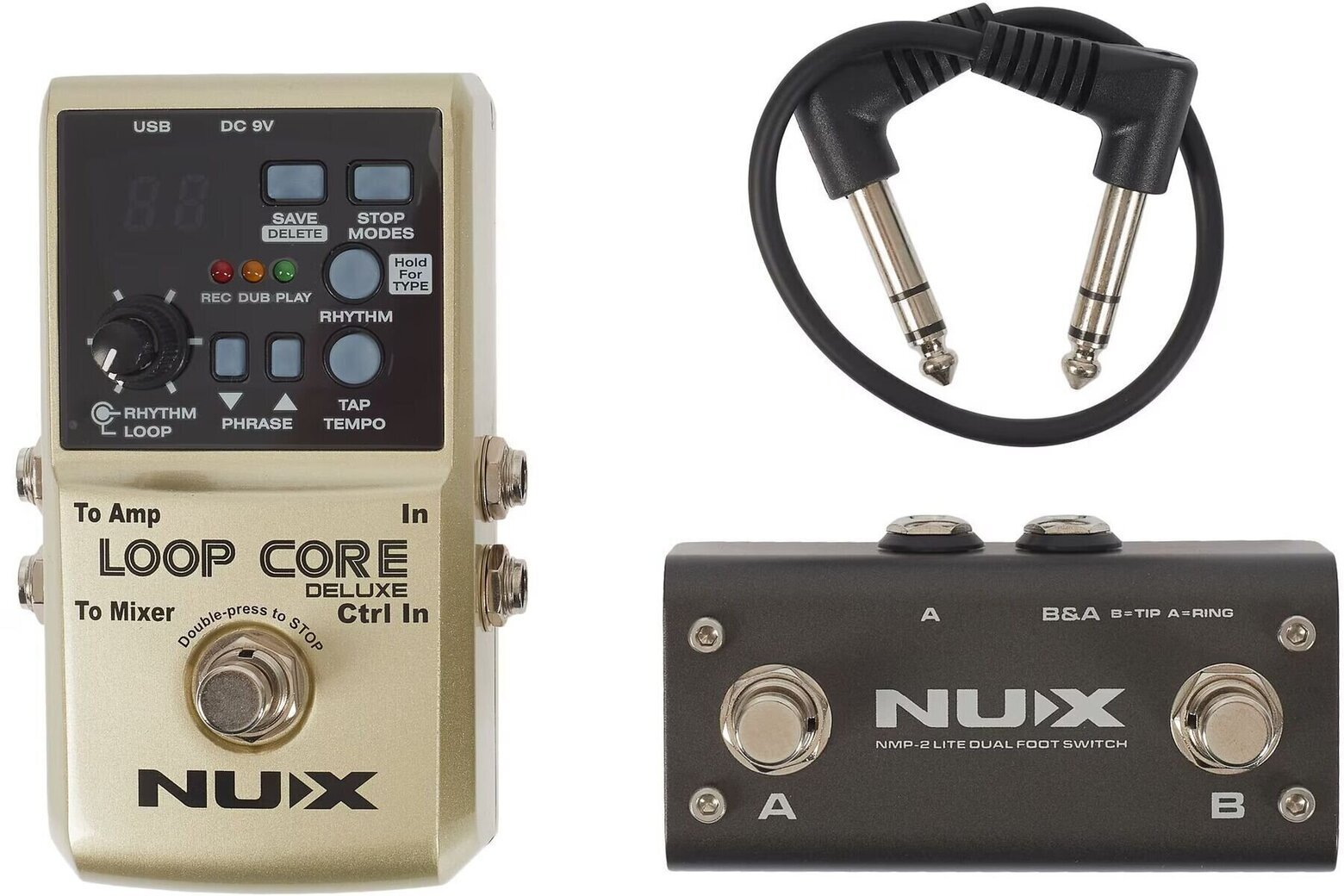

• Package Contents: Loop Core Deluxe pedal + NMP-2 Dual Footswitch with connection cable — ready to use out of the box
